garybrun Posted November 9, 2022 Share Posted November 9, 2022 (edited) I have recently acquired a Dangerous D-Box Summing Mixer. What I want to do is record the "Print Track" to a new Stereo Track in a project. So... I am summing my project through the 8 analogue channels of the mixer.. how do I record this? Its got me beat (my head must be in the wrong place). I am using an Apollo X8p and I am mirroring (digital mirror on) but I can't find out how to record that mirror. hope I make sense. Thanks in advance. Gary Edited November 9, 2022 by garybrun Link to comment Share on other sites More sharing options...
DeeringAmps Posted November 10, 2022 Share Posted November 10, 2022 Gary, first I’ll admit I only took a quick glance at both pieces of gear. Based on that I would send the AES output from the D-Box into the Apollo and record that. Question; the D-Box sums 8 analog tracks. How do you get the 8 tracks in? I don’t see 8 analog inputs. They come in digital? Then the D-Box does the D/A A/D ? t Link to comment Share on other sites More sharing options...
garybrun Posted November 10, 2022 Author Share Posted November 10, 2022 @DeeringAmps Thanks for taking the time to look... appreciated. The .pdf explains the setup. I have everything working fine except the print track. I have never recorded a print track even without the d-box before. The summing works fine. The analogue and daw part works fine. Its just recording the sum I cant work out. I must have some routing wrong somewhere. The sums should be mirrored to the spidif.. so I thought I should make the input on aux track as spidif.. not managed to sort this bit out yet. hooking-up-d-box-with-ua-apollo.pdf Link to comment Share on other sites More sharing options...
garybrun Posted November 10, 2022 Author Share Posted November 10, 2022 The problem is with the spdif. I can monitor the summing and the DAW and Analogue.. but can not record the feeds back into cakewalk. Can anyone explain how to record your master back into cakewalk on a track? Link to comment Share on other sites More sharing options...
Sheens Posted November 10, 2022 Share Posted November 10, 2022 (edited) Hey Gary, You can connect the L + R outputs (main or summing depending on which Dangerous box you have) to Apollo's Line Inputs ( 1 or 2 fe). In Cakewalk (I guess) add a new track (or bus ?) and select the 2 Apollo Inputs as inputs, and Output them to your Apollo 'master'/'end' bus (or any bus you like). (guess you have a working routing to the Dangerous Box already, you might need to enable the Dangerous outputs/Apollo inputs in Cakewalk if ye haven't already....under Preferences/Devices/Input). good luck Edited November 10, 2022 by Sheens 1 Link to comment Share on other sites More sharing options...
garybrun Posted November 10, 2022 Author Share Posted November 10, 2022 @Sheens Thanks for the reply. I believe there is something wrong as I have tried all options. tried adding tracks and busses etc. Im going to reset the apollo as I know I have everything working with the D Bus.. the spdif is on mirror... but is greyes out in the Apollo io matrix. I run an x8p and an apollo twin. Going to try and switch of the apollo twin and see if its that... Link to comment Share on other sites More sharing options...

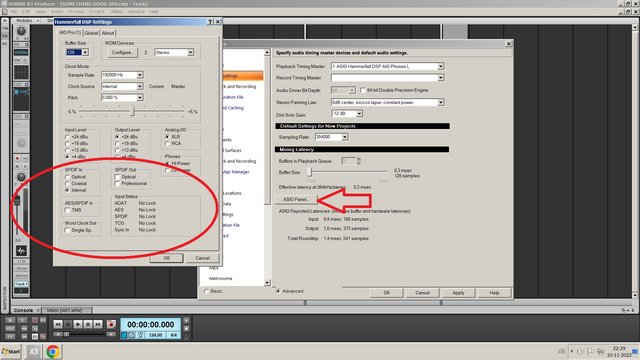

Sheens Posted November 10, 2022 Share Posted November 10, 2022 normally you'll be ok if all inputs/outputs look ok in Cakewalk and your computer (ASIO Panel) -> see pics below please. (Preferences/Audio/Devices) AND (Preferences/Audio/Driver Settings/ASIO PANEL) 1 Link to comment Share on other sites More sharing options...
garybrun Posted November 10, 2022 Author Share Posted November 10, 2022 All my inputs and outputs are ticked and showing. Without using summing how would you record your master bus to a track in cakewalk in Realtime? I am missing something... (Forget using a d-box) what would be the process for that? Link to comment Share on other sites More sharing options...
DeeringAmps Posted November 11, 2022 Share Posted November 11, 2022 (edited) 11 hours ago, garybrun said: The sums should be mirrored to the spidif.. The spdif from the D-Box or the Apollo? I'm looking at the manuals and it looks like you use the D-Box "Summing Out" into the Apollo In (they suggest using 7 & 8 ) Basically just what Sheens suggested... 3 hours ago, garybrun said: Without using summing how would you record your master bus to a track in cakewalk in Realtime? I guess you create an Aux track that is feed from a send on the Master Buss. t Edited November 11, 2022 by DeeringAmps 1 Link to comment Share on other sites More sharing options...
garybrun Posted November 11, 2022 Author Share Posted November 11, 2022 OK... my mistake was not creating an AUX track.. I created a track instead!!! ? Now I have worked that out and can record my master bus. Just have to work out now how to get the spidif working on an input. It works on an output though as its sending the signal to my D Box via mirror to the DAW input on the D Box. I need the spdif to record the sum. mmm. Link to comment Share on other sites More sharing options...
garybrun Posted November 11, 2022 Author Share Posted November 11, 2022 Correction.. I think maybe the output for the dbox sum is not working. Will need some electronic checks for that. Link to comment Share on other sites More sharing options...
DeeringAmps Posted November 14, 2022 Share Posted November 14, 2022 On 11/11/2022 at 5:59 AM, garybrun said: the output for the dbox sum is not working If you connect the SUM Outputs (that's an analog signal) to a pair of the Apollo analog inputs you get nothing? After reviewing the D-Box manual this is the only Summed output form the D-Box. t Evidently I didn't "Submit Reply"; better late than never... 1 Link to comment Share on other sites More sharing options...
garybrun Posted November 15, 2022 Author Share Posted November 15, 2022 10 hours ago, DeeringAmps said: If you connect the SUM Outputs (that's an analog signal) to a pair of the Apollo analog inputs you get nothing? That correct. I am sending the SUM Output to analogue 7 + 8. I do not see any signal in the UAD Control Panel for imputs 7 + 8. Need to do a little more research. I hope the sum output of the box is not damaged. Will also check to see if I can get signal into Apollo 7+8 via another feed. 1 Link to comment Share on other sites More sharing options...
DeeringAmps Posted November 15, 2022 Share Posted November 15, 2022 Keep us posted. Link to comment Share on other sites More sharing options...
