Issue making cc101 trigger a keyswitch

[Andres Medina]

Hello,

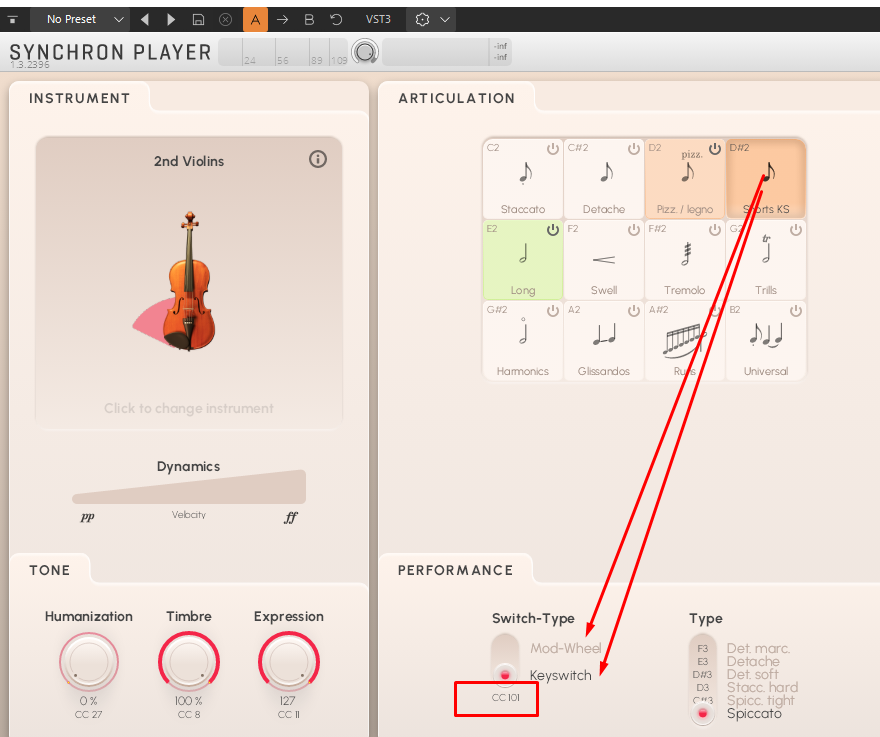

I'm having trouble making cc101 trigger a switch in VSL Duality Strings (Flow View) - see pic.

VSL customer support checked in Cubase, and it works as expected.

I found out that cc101 is a different type of controller (RPN) which I'm not familiar with.

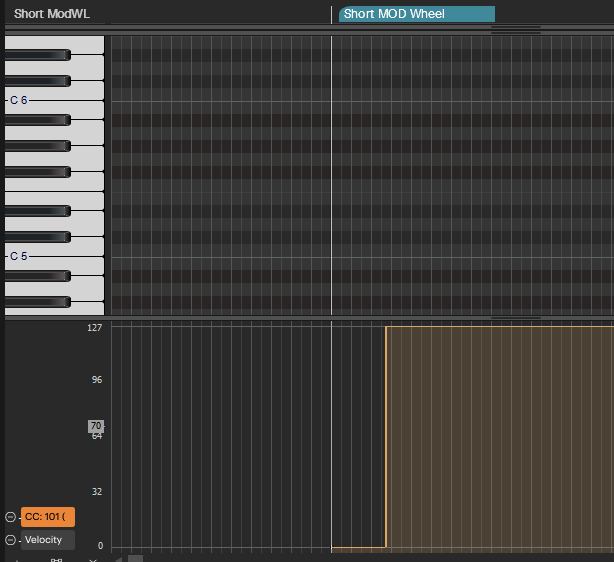

Am I missing something when I write a cc 101 lane in PRV to make it work? It should work as any other controller, but it doesn´t in Sonar.

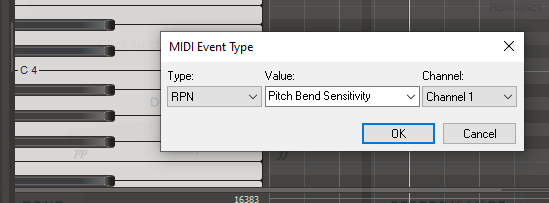

I tried selecting RPN Type from the controller list in prv, but I don't find a way to select cc101.

Any help much appreciated.

Thanks!

[msmcleod]

They've been a bit naughty here... CC101 is indeed an RPN, but they're meant to be sent out in pairs (as per MIDI spec)... i.e.  CC101 should be paired with a CC100 - which is what Sonar will do.

I think using an articulation map may get around this.

[Andres Medina]

Thanks! I see.

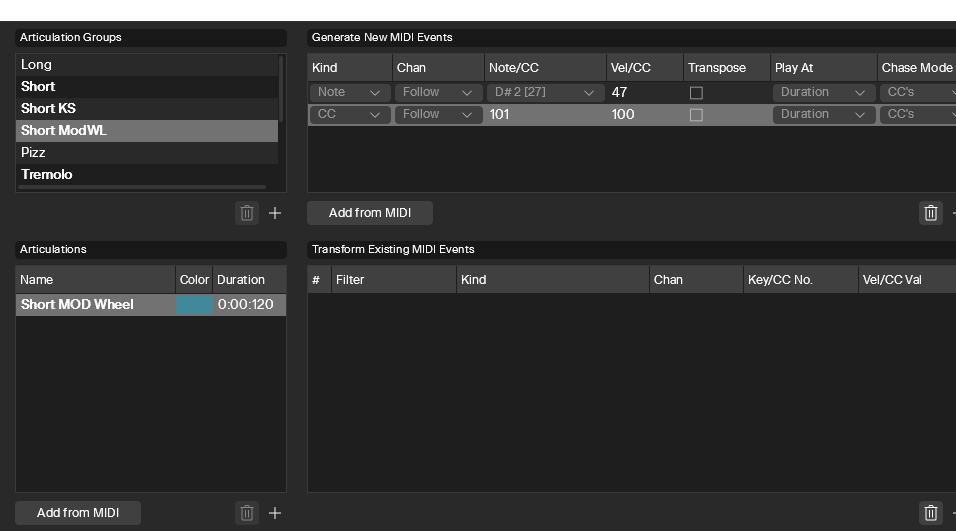

In fact, I'm trying to make my articulation map work, but the cc101 mapping does not trigger the intended articulation.

Maybe I'm doing something wrong here?

See pictures and video:
